Expanding taper, two-start thread design with varying profile offers high primary stability, ideal bone condensing and adjustable implant orientation
i-Fix Bone-level implant system
IP Series
Also known as i-Fix Pro. An expanding-taper, two-start thread implant with a backtapered coronal region, twin cutting flutes and twin apical cutting blades — the longer, larger-diameter member of the i-Fix bone-level family, also known as i-Fix Pro.
7.5–20 mmLength range
32Catalog article codes
Bone-level implant system
IP Series
An expanding-taper, two-start thread implant with a backtapered coronal region, twin cutting flutes and twin apical cutting blades — the longer, larger-diameter member of the i-Fix bone-level family, also known as i-Fix Pro.
ConnectionConical connection — internal hex 2.25 A/F, 12° Morse taper, M1.6 screw
MaterialASTM F136 ELI Grade 5 titanium alloy
SurfaceNano Bio Activated surface (Sweden)
03 Size portfolio
Diameter × length matrix<br /><em>with catalog codes.</em>
Every combination the catalog actually manufactures, with its article code. Select any code to copy it — rows are diameters, columns are lengths in millimetres.
| Ø (mm) | 7.5 | 8.5 | 10 | 11.5 | 13 | 15 | 18 | 20 |
|---|---|---|---|---|---|---|---|---|
| Ø 3.5 | — | |||||||
| Ø 4.0 | ||||||||
| Ø 4.5 | — | — | ||||||
| Ø 5.0 | — | — | ||||||
| Ø 5.5 | — | — | — |
Codes and availability transcribed from the current i-Fix Dental Implant Compendium (common catalog). The implant is co-packed with its cover screw.
04 Restorative workflow
Prosthetic components
for IP Series.
Component families available for this series, with catalog article codes — click any code to copy it.
Multi-unit abutments Straight and angled multi-unit abutments with collars, healing caps, screws, copings, sleeves and analogs. +
| Straight MUA — 1.5 mm collar | |
| Straight MUA — 3.5 mm collar | |
| 17° angled MUA — 2.5 mm collar | |
| 17° angled MUA — 3.5 mm collar | |
| 30° angled MUA — 3.5 mm collar | |
| 30° angled MUA — 4.5 mm collar | |
| Healing cap MUA | |
| Abutment screw (M1.6 mm) MUA | |
| Prosthetic screw (M1.4 mm) MUA | |
| Temporary coping MUA | |
| Open tray impression coping MUA | |
| Closed tray impression coping MUA | |
| Abutment analog MUA | |
| Castable sleeve MUA (plastic) | |
| Protection analog MUA |
Single-unit abutments Screw- and cement-retained abutments for single crowns and bridges. +
| UCLA with Hex 4.15 × 1 | |
| UCLA with Hex 5.2 × 1.5 | |
| UCLA with Non-Hex 4.15 × 1 | |
| UCLA with Non-Hex 5.2 × 1.5 | |
| Ti Base abutment Hex | |
| Ti Base abutment Hex 4.15 × 2 | |
| Ti Base abutment Hex 4.15 × 3 | |
| Ti Base abutment Non-Hex | |
| Ti Base abutment Non-Hex 4.15 × 2 | |
| Ti Base abutment Non-Hex 4.15 × 3 | |
| Shoulder abutment 4.15 × 1 / × 2 / × 3 | Non-hex: SANH4001–SANH4003 |
| Shoulder abutment 5.2 × 1.5 / × 2.5 / × 3.5 | Non-hex: SANH5001–SANH5003 |
| Angled abutment 15° — 4.15 × 1 / × 2 | |
| Angled abutment 15° — 5.2 × 1.5 / × 2.5 | |
| Angled abutment 25° — 4.15 × 1 / × 2 | |
| Cemented abutment Ø4.15 | |
| Cemented abutment Ø5.20 |
Overdenture solutions Ball and locator abutment components for removable overdentures. +
| Ball abutment — 1 / 3 / 5 mm collar | |
| Ball abutment housing package | |
| Ball abutment analog | |
| Ball abutment insertion tool | |
| Locator abutment — 0 / 2 / 4 / 6 mm collar | |
| Locator abutment housing analog | |
| Locator abutment analog |
Healing, impression & temporary Healing abutments, impression copings and temporary abutments in 4.15 / 5.2 mm collar diameters. +
| Healing abutment 4.15 × 1 / 2 / 3 / 4 / 5 / 6 mm | Collar × length in mm |
| Healing abutment 5.2 × 1.5 / 2.5 / 3.5 mm | |
| Open tray impression coping Ø4.15 / Ø5.2 | |
| Closed tray impression coping long / short | |
| Temporary abutment Hex | |
| Temporary abutment Non-Hex |
Scan & digital workflow Scan bodies and analogs for the digital / Exocad workflow. +
| H Scan Body (short) | |
| H Scan Body (long) | |
| Digital analog | |
| Implant analog |
05 Engineering highlights
What makes
IP Series what it is.
Design features taken directly from the current product catalog — not marketing paraphrase.
Backtapered coronal region preserves maximum bone volume around the implant platform
Expanding tapered body attains high stability even in compromised bone situations
Twin cutting flutes ease insertion and bone transfer
Twin apical cutting blades facilitate insertion into minimally prepared sites
06 Kit & documentation
Surgical kit,
catalog and IFU.
Always verify the current catalog, IFU, indications and compatibility before clinical use.
07 Where IP Series fits
Reference material
for treatment planning.

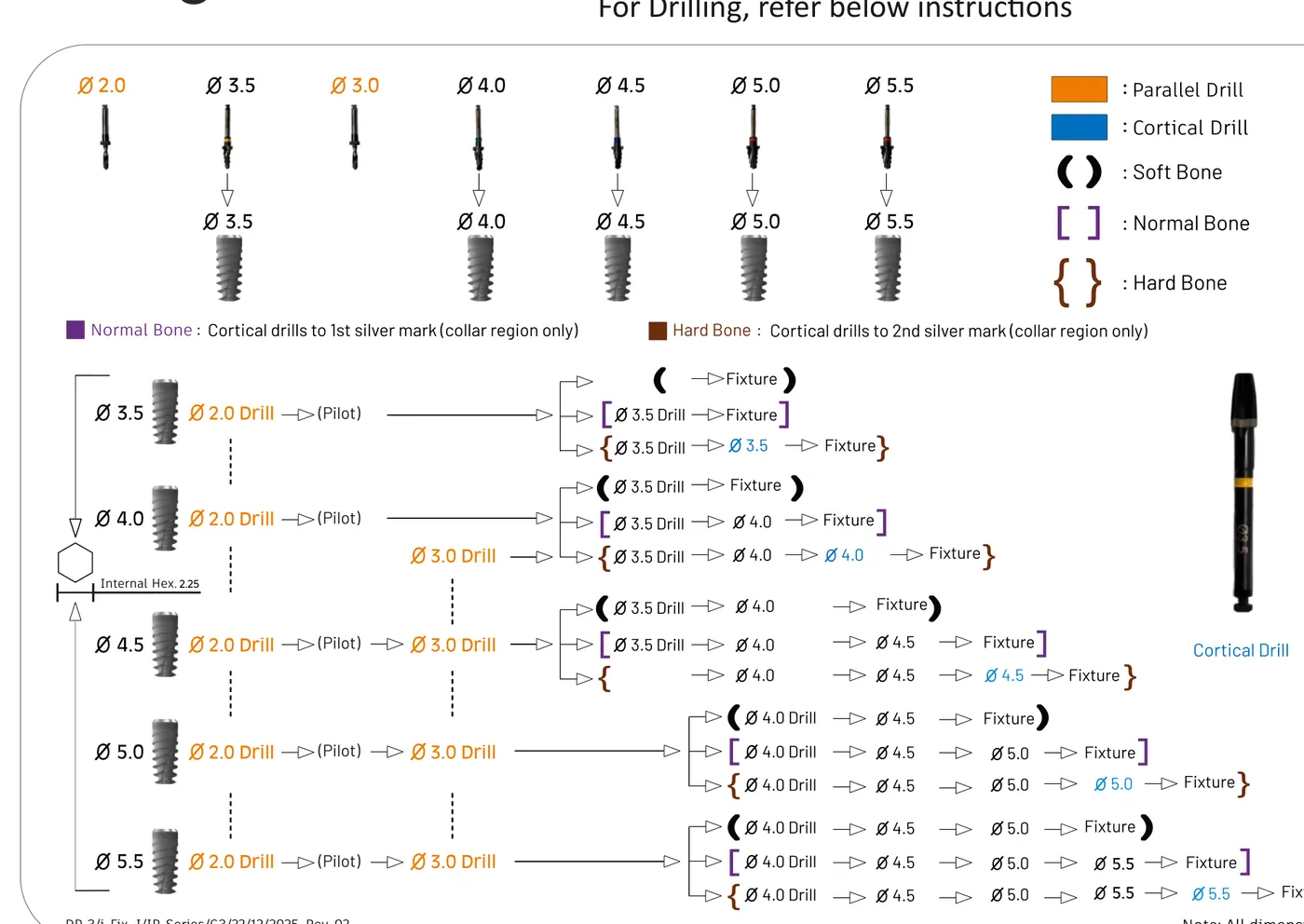

The current catalog, Instructions for Use and drilling protocol for IP Series — the same documents used for regulatory and clinical reference.
.webp)
09 Frequently asked
Before you order
IP Series.
What sizes does IP Series come in?
5 diameter options and 8 lengths, shown in the Size portfolio matrix above with each combination's catalog article code.
Where do I get the surgical kit and drilling protocol for IP Series?
Both are in the Kit & Documentation section above, with the catalog and IFU linked directly.
Which prosthetic components work with IP Series?
The Restorative workflow section above lists every component family with its catalog article code — multi-unit, single-unit, overdenture, healing/impression and digital workflow components.
Is IP Series covered by a current IFU?
Yes — linked directly in the Kit & Documentation section above.
